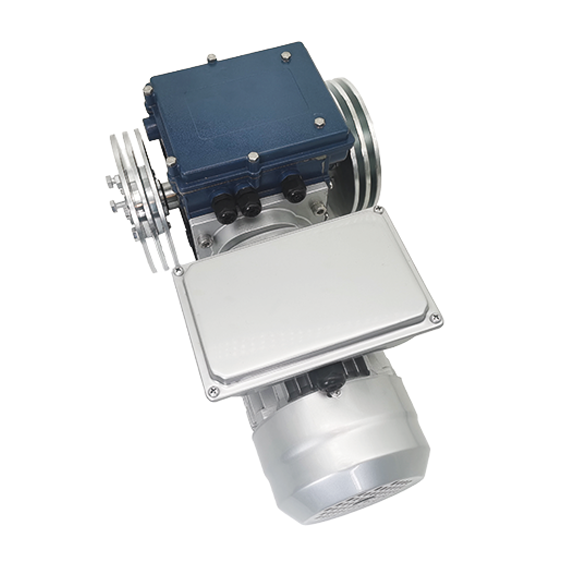

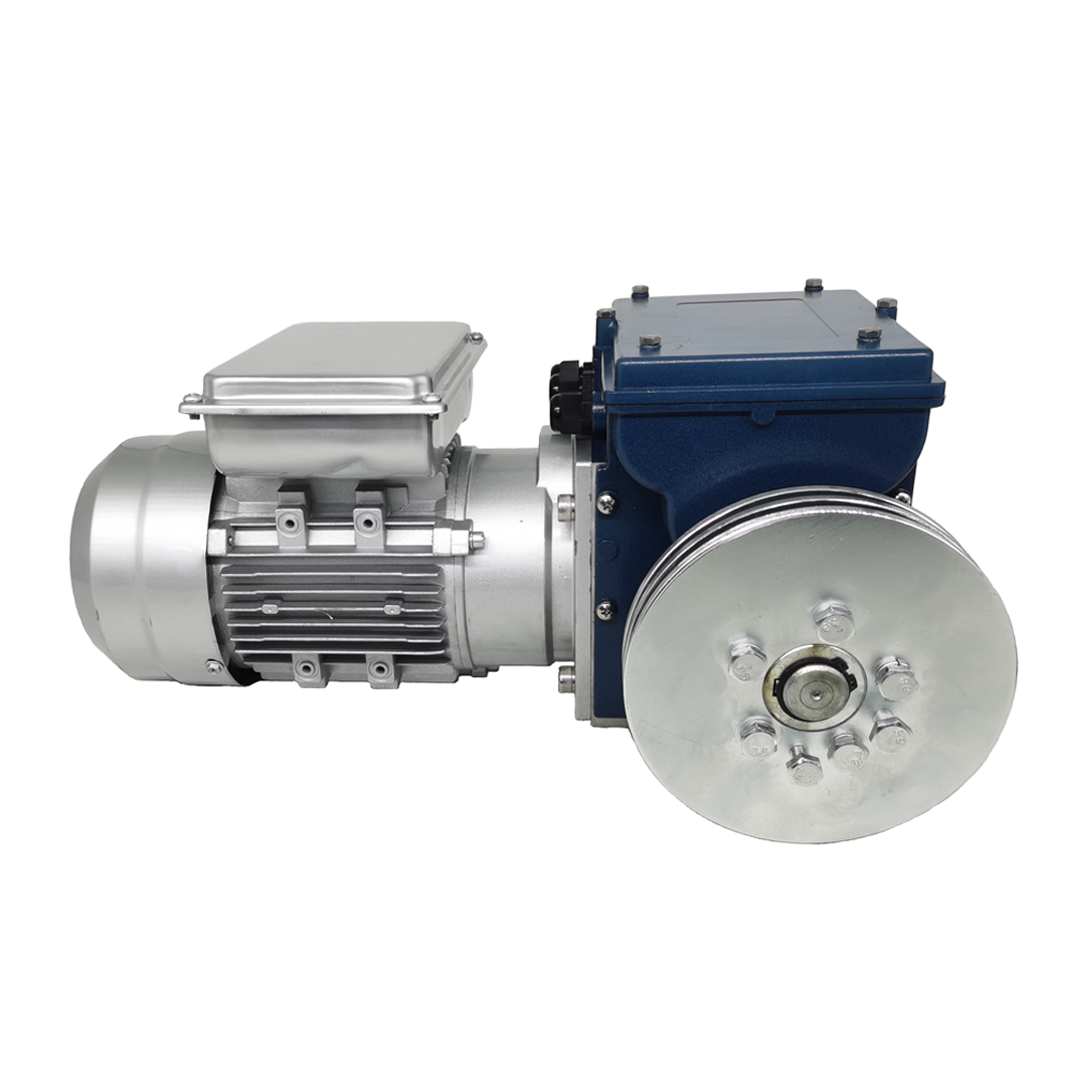

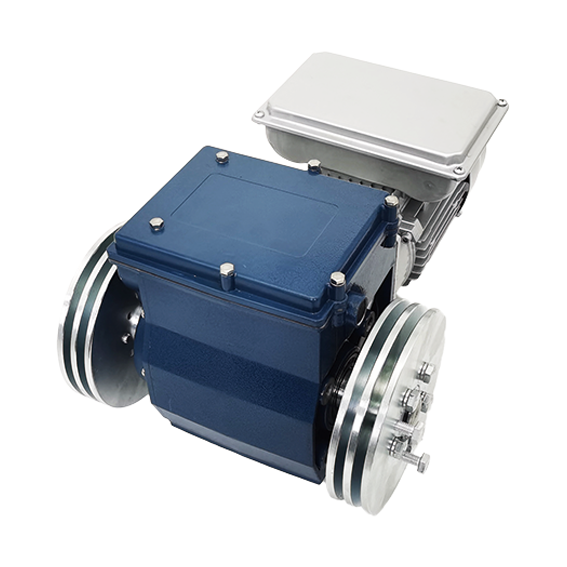

Reducer Motor (Model 71)
- Reducer Motor (Model 71)

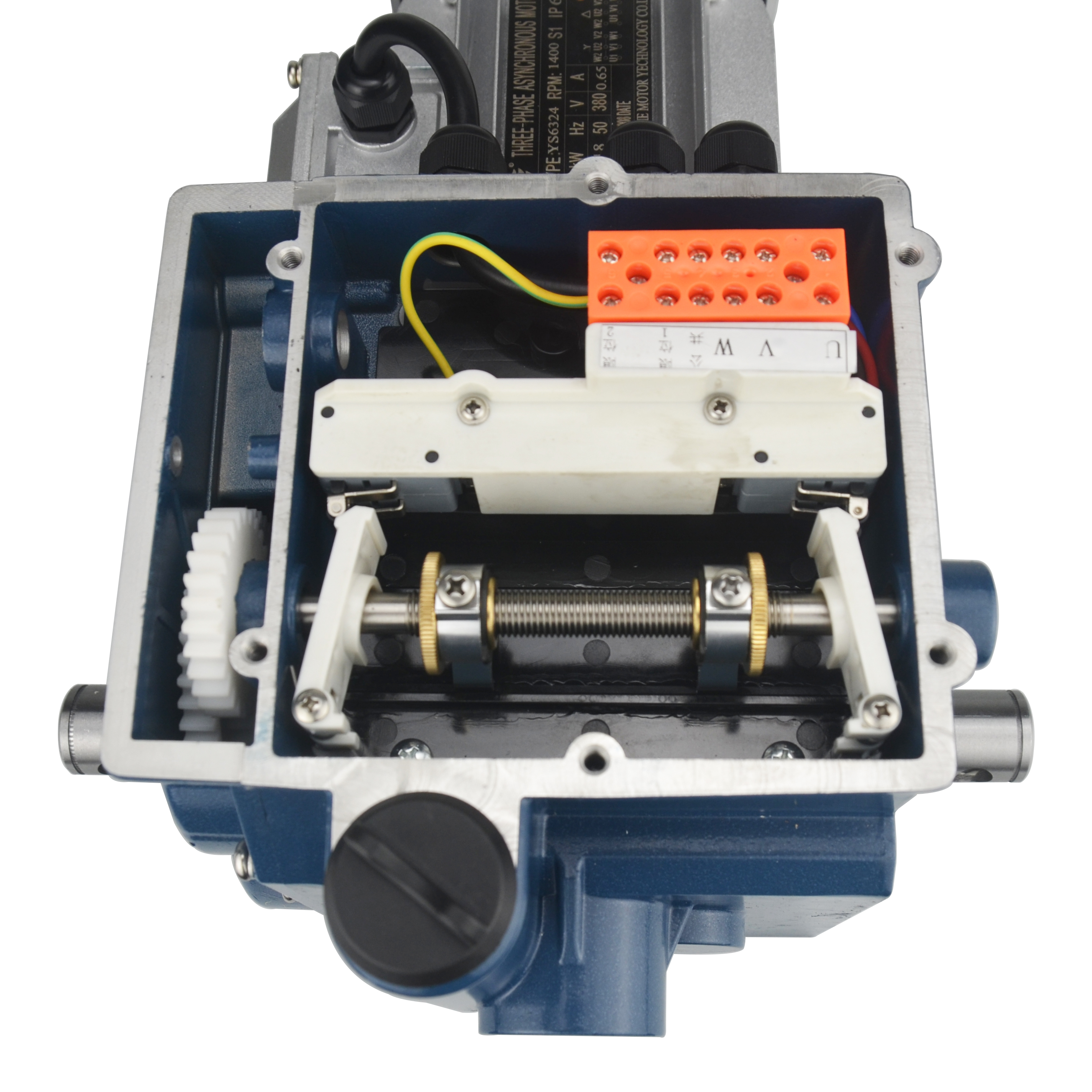

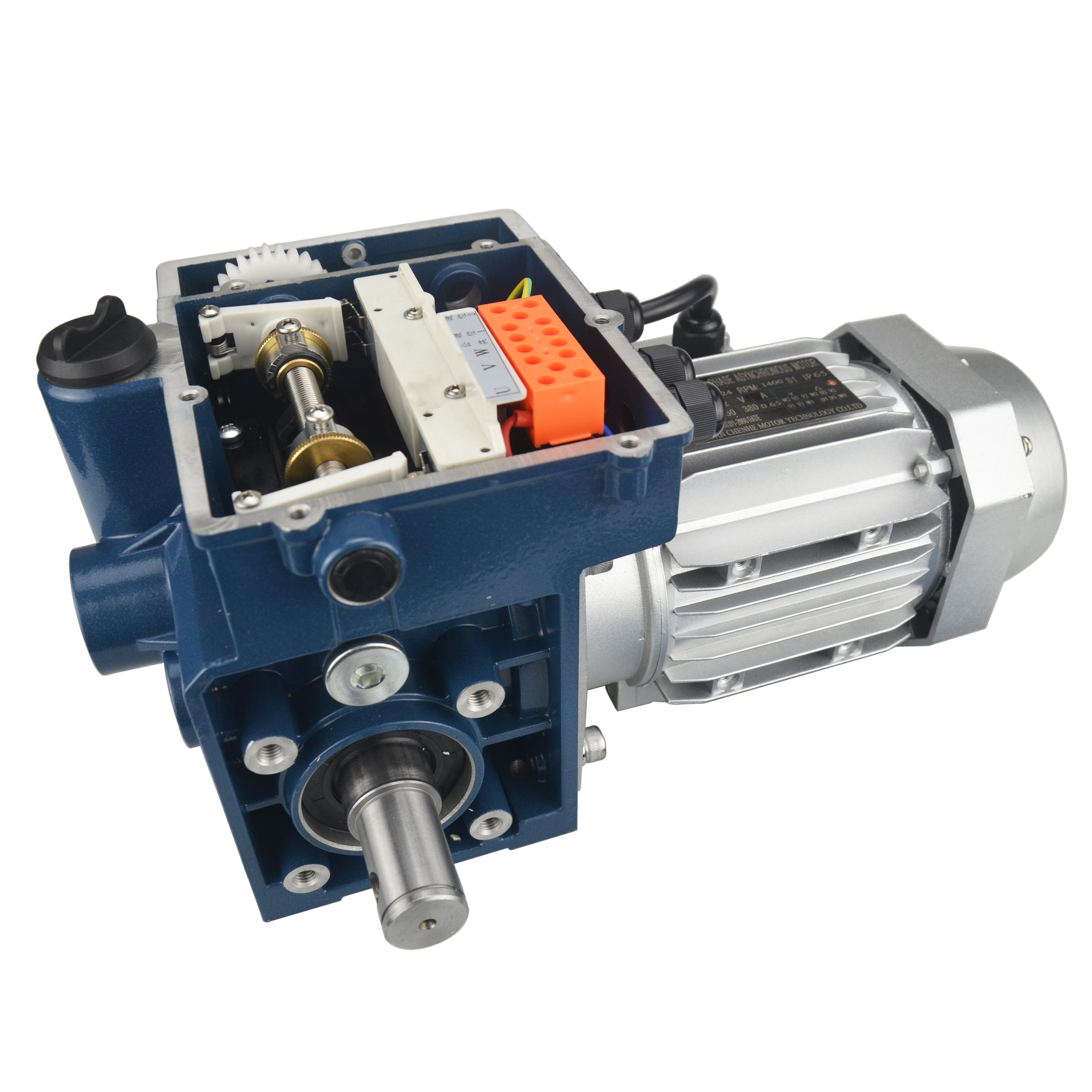

- 1. The Reducer Motor has an excellent reverse self-locking and stroke control device, which can realize automatic control, especially suitable for window opening occasions withhigh self-locking requirements.

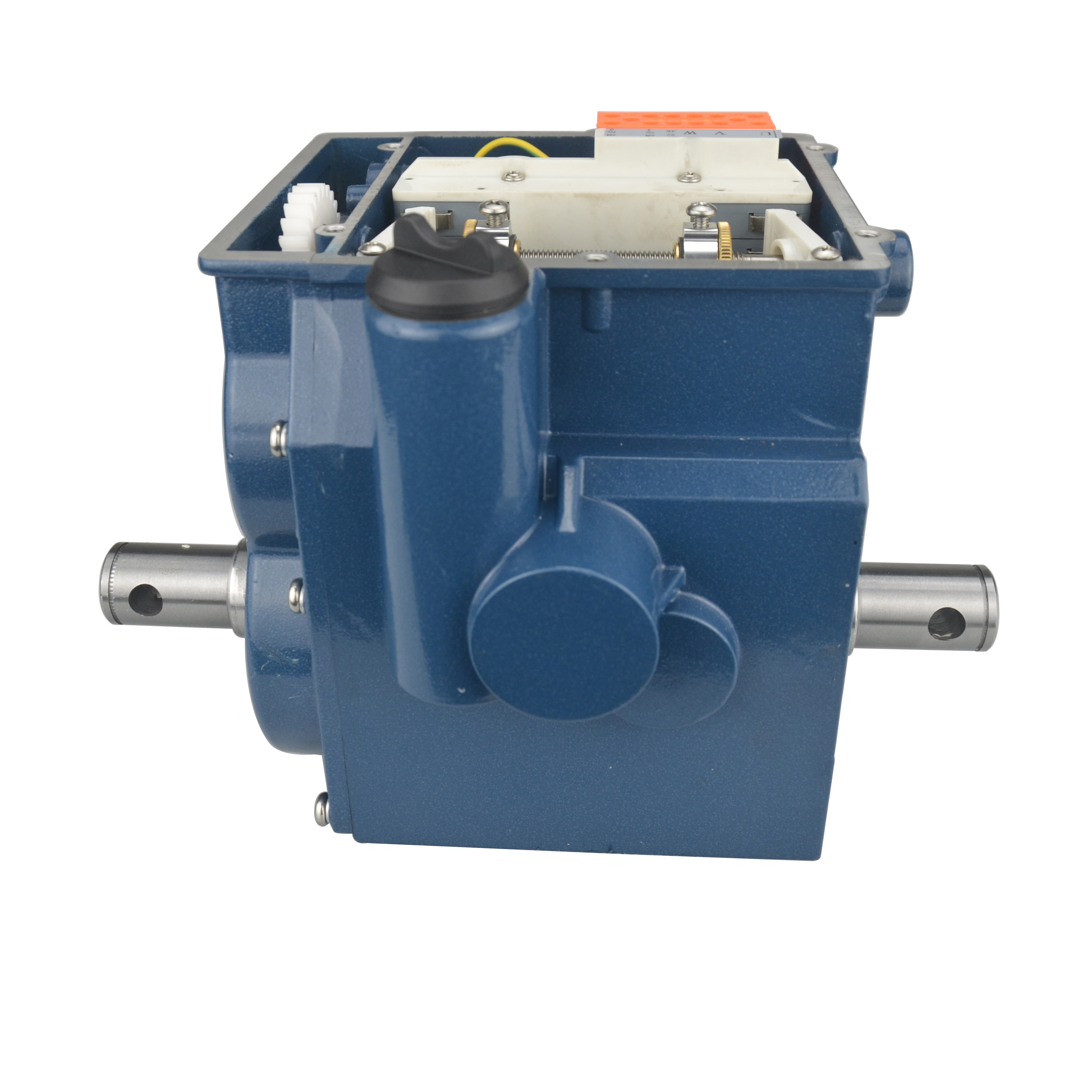

- 2. This product has a quick manual release function. When the product fails to operate due to a power outage, remove the release cover of the reducer, and use a rocker tomanually rotate the release shaft to manually control the operation of the reducer.

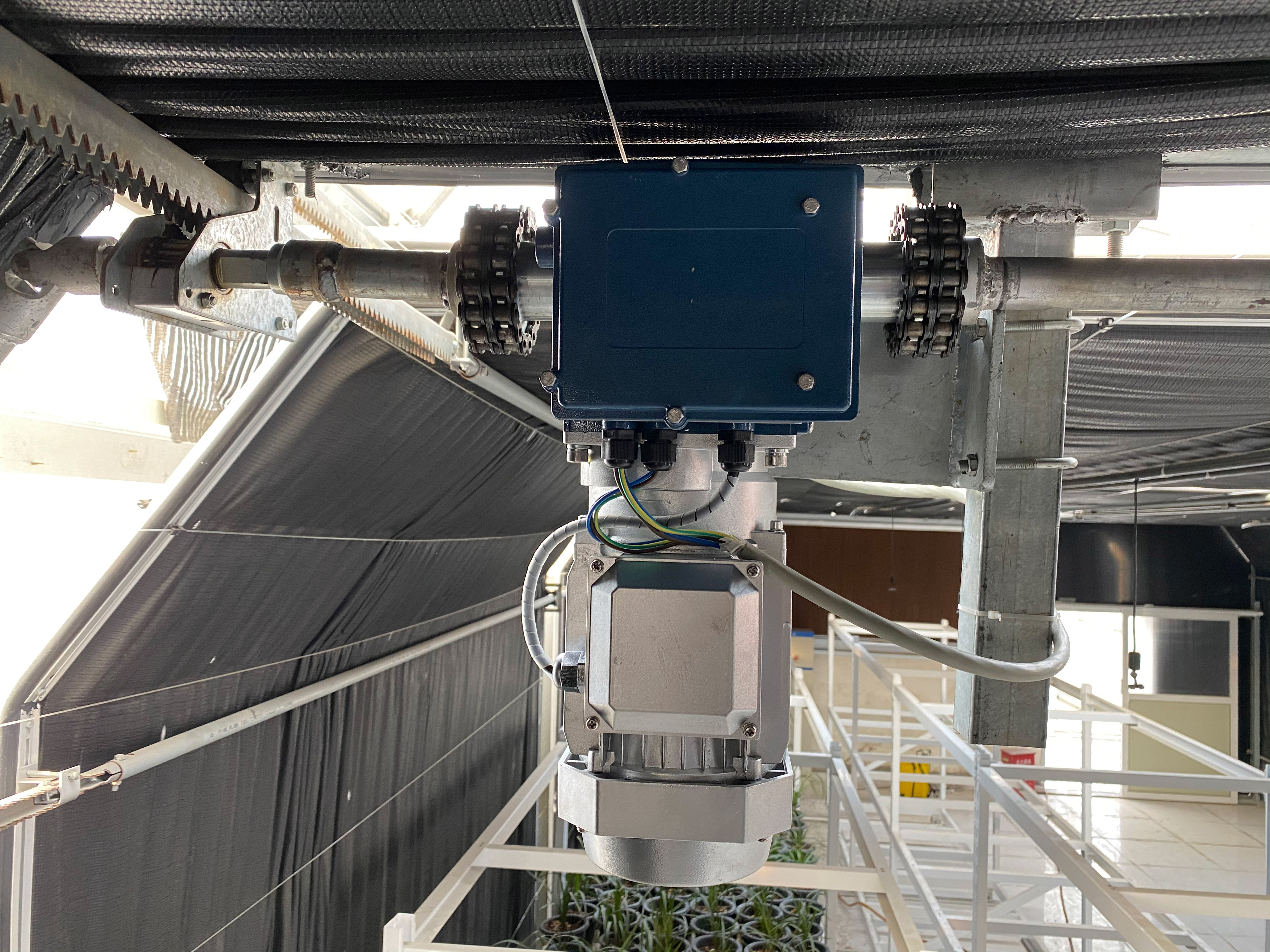

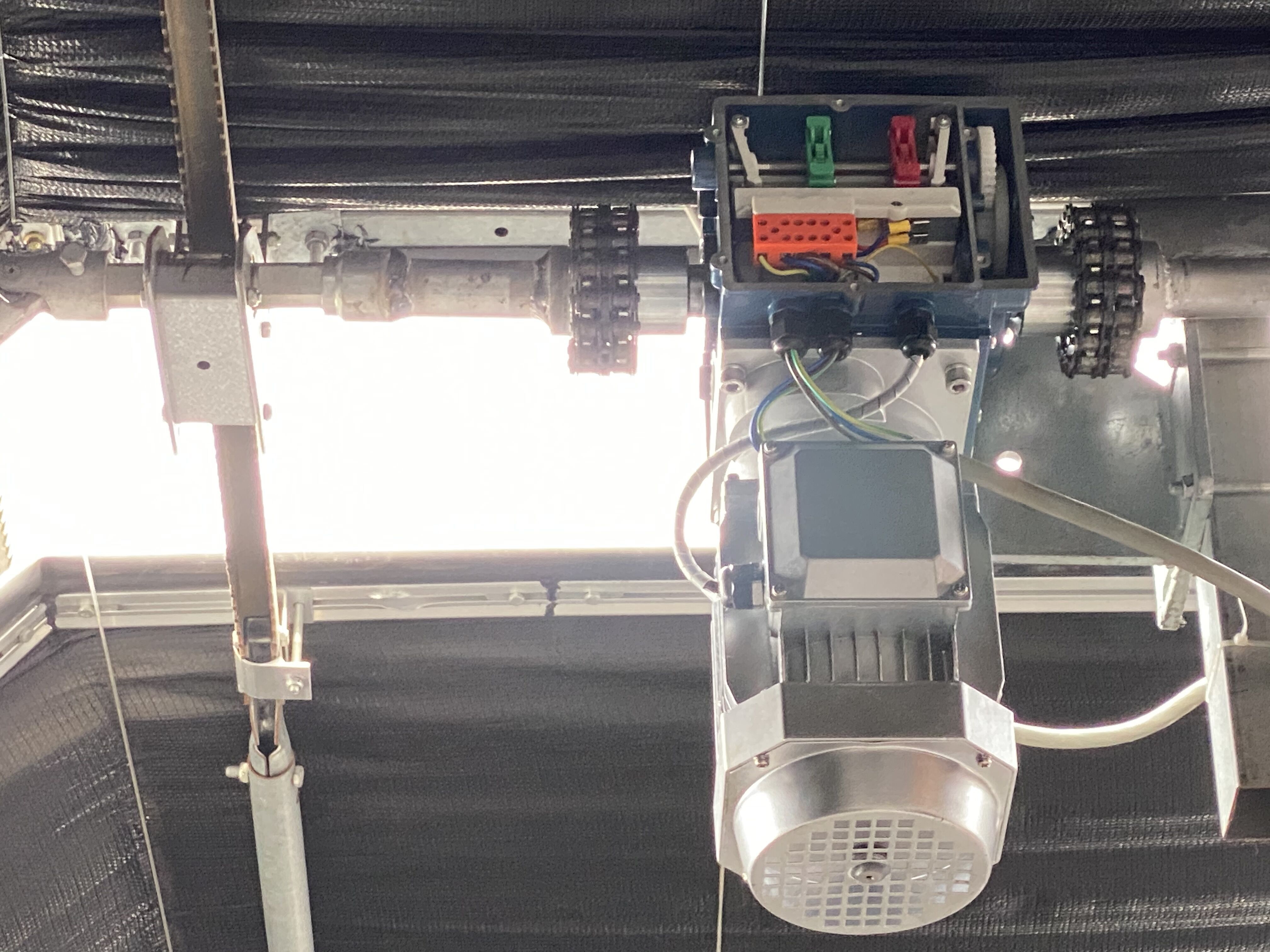

- 3. This product can help the Light Dep Greenhouse to realize the automation of the shading system. The reducer controls the movement of the Shade Net through the transmission of Rack & Pinion, which makes it easier to control the light acquisition of the greenhouse.
- Model:
- 71-220-2.6, 71-380-2.6 ,71-5.2
- Power:
- 0.37kw, 0.37kw ,0.55kw
- Speed ratio:
- 504:1, 504:1 ,264:1
- Torque:
- 370N.m, 370N.m ,280N.m
- Rotate speed:
- 2.6rpm, 2.6rpm ,3.4rpm
- Voltage:
- AC220v, AC380v ,AC380v
- Frequence:
- 50Hz
